High Drilling Shear Pump Mud Solid Control System JQB Series 18.5kw Motor

Name: High Drilling Shear Pump Mud Solid Control System JQB Series 185kw Motor
Brand: TR Solids Control
Price: 1 USD

China High Drilling Shear Pump Mud Solid Control System JQB Series 18.5kw Motor wholesale

Brand Name : TR Solids Control

Model Number : TRJQB4330

Certification : ISO 9001:2008

Place of Origin : Xi′an, China

MOQ : 1 Set

Price : Negotiated

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000 Sets / Month

Delivery Time : 30days

Packaging Details : Pallet or Wooden Case

specification : 1050×1000×900mm

Weight : 450kg

Motor : 18.5kw

Type : Shear Pump

Contact Now

Mud Solid Control System JQB Series High Drilling Shear Pump

Introduction

JQB Series shearing pump is used to shear, refine, mix polymer, bentonite etc drilling mud material. It can remove “fish eye” help drilling fluid achieve high property for oil drilling. JQB series shearing pump can save over 30% bentonite. It is ideal equipment for oil and gas drilling contractor.

TR shear pump adopts high quality mechanical seal with high durability. There won't be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.

Main Benefits of TR Mud Shear Pump

Material of mechanical seal is carbide alloy, its life is 5 times than normal.
Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
Using special impeller and shear board, shear efficiency> 95%.
Bearings are internationally renowned brands SKF, quality assured.
Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
Pump body adopts wear-resistant alloy cast iron with long service life.

Key Specifications of TR Shear Pump

Model	Flow Rate	Lift	Motor	Weight	Dimension
TRJQB6545	150m3/h	45m	55kw	980kg	1050×1000×1360mm
TRJBQ6535	100m3/h	35m	37kw	800kg	1050×1000×1230mm
TRJBQ5430	60m3/h	30m	30kw	650kg	1050×1000×1100mm
TRJBQ4330	40m3/h	30m	18.5kw	450kg	1050×1000×900mm

High Drilling Shear Pump Mud Solid Control System JQB Series 18.5kw Motor

The shear pump shaft has high strength that can bear certain load, reducing shafts deflection and extending seals service life;The shaft is lubricated with lubricants and lubricating grease and the oil seal is made of special structure and materials, suitable for high and low temperatures and complicated environment.
Front opening structure is used for convenient installation, repair and maintenance.

Our TRJQB serial shear pump is a special pump for solid control drilling fluid additives, with engine powers of 75kw, 55kw, 45kw and 37kw, suitable for power grids of 50Hz and 60Hz, and it has both Metric and British systems as measuring standards.

The shear pump can provide high displacement and head, and meet the requirements of mud preparation and management.

Any other questions please contact us freely. You must get satisfied solutions on TRJQB Shear pump just contact TR Solids Control freely. The qualified products while economical cost with swift delivery and circumspect service.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Product Tags:

drill fluid pump

cutter pump

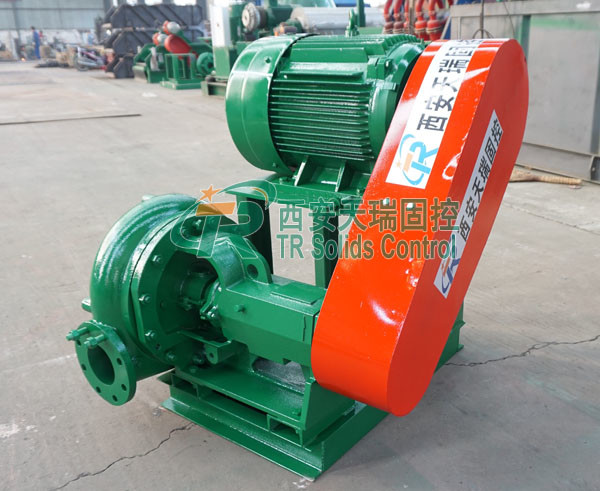

High Drilling Shear Pump Mud Solid Control System JQB Series 18.5kw Motor Images
